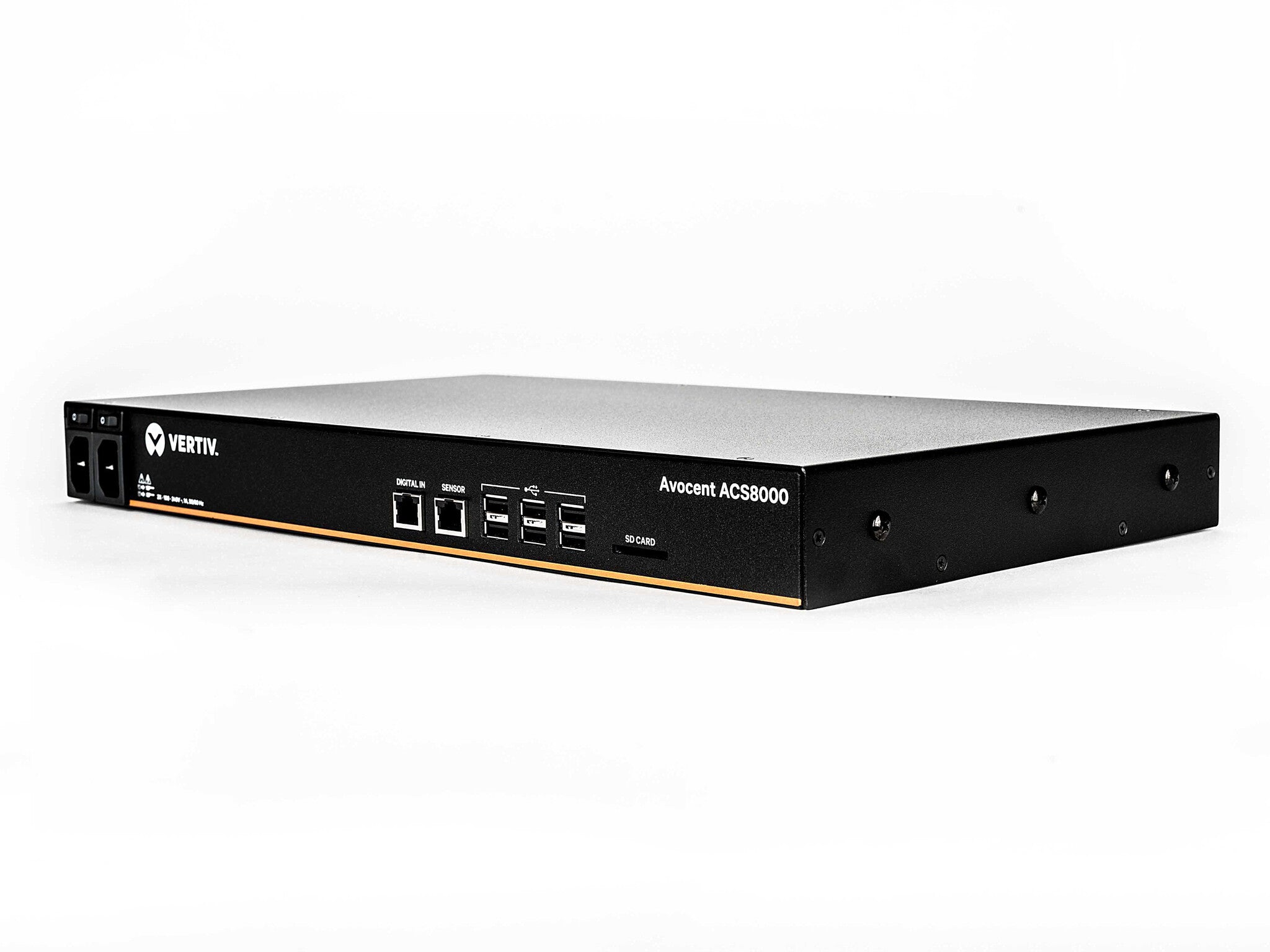

Vertiv Avocent 16-Port ACS 8000 with single AC Power Supply – ACS80016SAC-404
- Secure in-band and out-of-band network remote management
- Fast, automated configuration with Zero Touch Provisioning
- Access and troubleshoot remote locations using automatic network failover
- No need for adaptors with automatic Cyclades™ and Cisco pin-out conversions
- Compliance with data center access and security policies
- Console event logging and notification
- Integrated support for 1Gb SFP fiber modules
- USB ports to support new IT equipment and external devices
The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).
| Technical details |
| Rack mounting |
Yes |
| Internal modem |
No |
| Zero Touch Provisioning (ZTP) |
Yes |
| Web-based management |
Yes |
| Temperature sensor |
Yes |
| Product colour |
Black |
| Management features |
| Management protocols |
CLI, HTTP/ HTTPS, SNMP |
| Security |
| Security algorithms |
3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| Authentication method |
LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP) |
| IP address filtering |
Yes |
| One-time password (OTP) |
Yes |
| Ports & interfaces |
| USB 2.0 ports quantity |
8 |
| SFP module slots quantity |
2 |
| General |
| Product family |
Avocent |
| Processor |
| Processor frequency |
667 MHz |
| Processor cores |
2 |
| Processor architecture |
ARM Cortex-A9 |
| Processor family |
ARM Cortex-A9 |
| Operational conditions |
| Operating temperature (T-T) |
-10 – 60 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage relative humidity (H-H) |
5 – 95% |
| Certificates |
| Certification |
FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Power |
| Number of power supply units |
1 |
| Power consumption (typical) |
20 W |
| Power consumption (max) |
35 W |
| AC input voltage |
104 – 240 V |
| Network |
| Cable types supported |
Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Memory |
| Flash memory |
16000 MB |
| RAM capacity |
1024 MB |
| RAM type |
DDR3L |
| eMMC capacity |
16 GB |
| Other features |
| Safety |
UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
