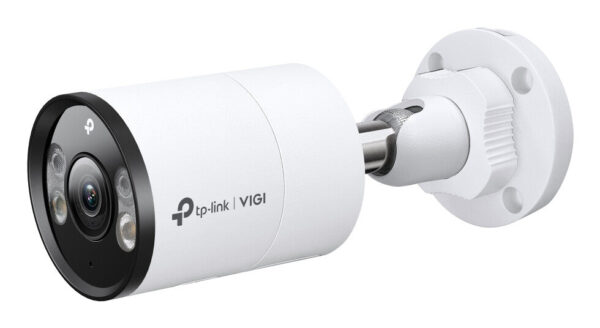

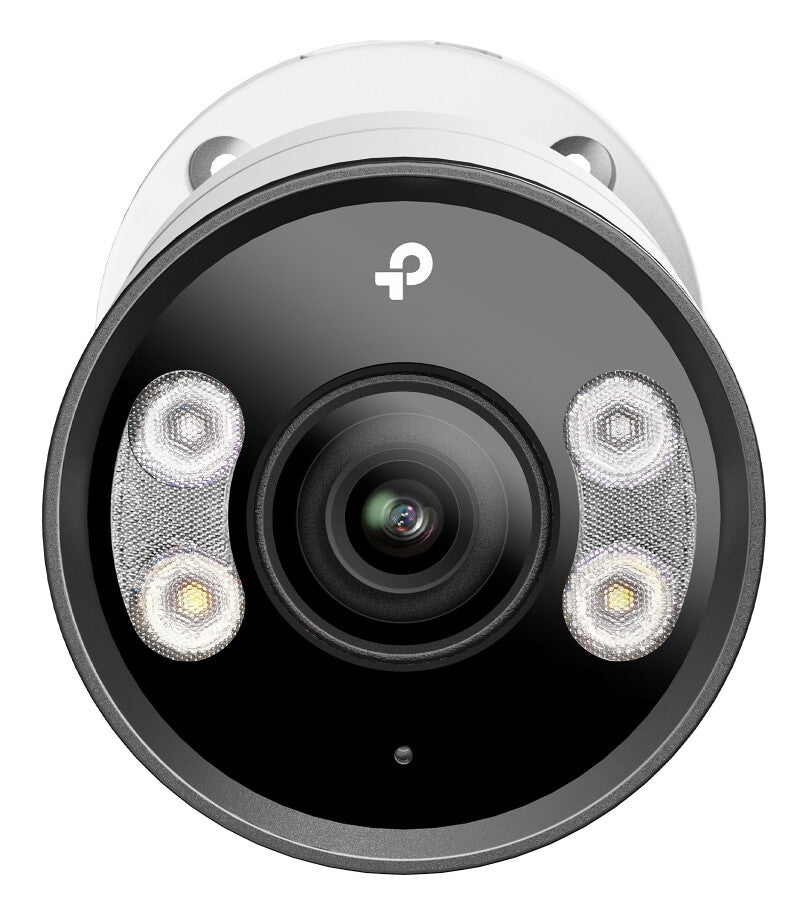

TP-Link INSIGHT S385 Bullet IP security camera Outdoor 3840 x 2160 pixels Wall
- 4K (8MP) Ultra HD and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance | |
|---|---|
| Dynamic range | 120 dB |
| Remote viewing | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Maximum operating distance | 107 m |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Weatherproof | Yes |
| International Protection (IP) code | IP67 |
| Protection features | Waterproof |
| Housing material | Metal |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Bullet |
| Camera | |
|---|---|
| Camera shutter speed | 1/3 to 1/10000 |
| Tilt angle range | 0 – 90° |
| Lens viewing angle, diagonal | 109.6° |
| Lens viewing angle, vertical | 46.1° |
| Lens viewing angle, horizontal | 91.5° |
| Minimum illumination | 0 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 4 mm |
| Identify distance | 11 m |
| Maximum aperture number | 1.6 |
| Fixed focus | Yes |
| Recognize distance | 21 m |
| Observe distance | 44 m |
| Detect distance | 107 m |
| Night vision | |
|---|---|
| LED type | IR/White |
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Bit rate | Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Video recording | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 3840 x 2160 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Total megapixels | 8 MP |
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
|---|---|
| Bit rate range | 0 – 64 Kbit/s |
| Number of microphones | 1 |
| Built-in microphone | Yes |
| Sample rate | 8 kHz |
| Audio formats supported | G.711 A-law |
| Audio output channels | 1 channels |
| Audio input channels | 1 channels |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Live view | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Motion sensor | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Mirror | Yes |
| Digest authentication | Yes |
| Alert notification type | Push notification |
| Password protection | Yes |
| Built-in siren | Yes |
| Management features | |
|---|---|
| Reset button | Yes |
| Cloud-managed | Yes |
| Web browser | Yes |
| Web-based management | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 11.5 W |
| Power consumption (max) | 10.5 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating temperature (T-T) | -30 – 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 525 g |
| Length | 184 mm |
| Height | 74 mm |
| Width | 74 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Manual | Yes |
| Drilling template included | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
