StarTech.com Wall Mount Monitor Arm – Articulating Ergonomic VESA Wall Mount Monitor Arm – 20″ (52cm) Long – Single Display up to 34 inch – Swivel/Tilt/Rotate – Adjustable Screen Mount
- 34 INCH MONITOR WALL MOUNT: VESA 75×75/100x100mm compatible heavy duty articulating wall mount monitor arm supports a single display up to 34″” (30.9lb/14kg)
- WIDE RANGE OF MOTION: Ergonomic monitor wall mount with +90/-15° tilt, +/-180° swivel, and 360° portrait/landscape rotating screen; Adjustable wall mounted monitor arm
- 20″” LONG ARTICULATING ARM: Featuring 3 different joints along the arm, each being able to swivel +/-90°; Arm reaches out to 20.5″” (520mm) & folds in to 5.1” (129.2mm) from wall for easy re-positioning
- EASY INSTALLATION: Premium silver aluminum single PC monitor wall mount w/ easy tool-less slide & click installation for arms & VESA plate/bracket (75×75/100x100mm); Reduced set-up time
- ORGANIZED WORKSPACE: Single LCD/LED computer monitor wall mount for areas with limited work surface space; Cable management clips along the arm; Decorative covers
Single-Display Wall Mount | Aluminum | Tool-less Assembly| For up to 34” Monitors
Free up space with this wall-mount monitor arm and enjoy optimum viewing with the long dual-swivel extension arm. The premium design ensures smooth, effortless motion and makes it easy to re-position your display, to work in comfort or collaborate with others. The attractive silver finish complements your decor.
The wall-mount system is ideal for business, healthcare, financial or other settings, where you may want to share your screen, or for customer-facing interactive displays.

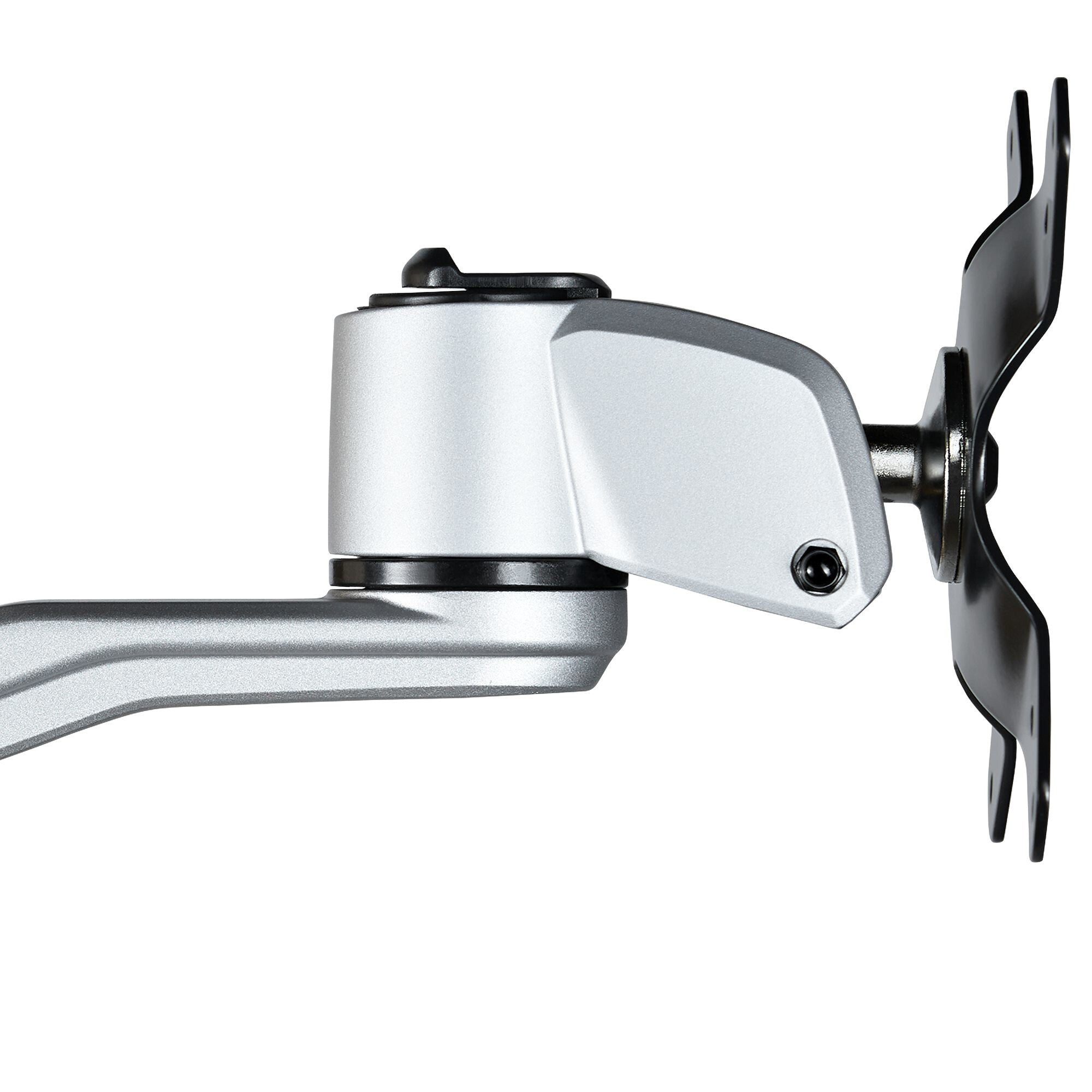

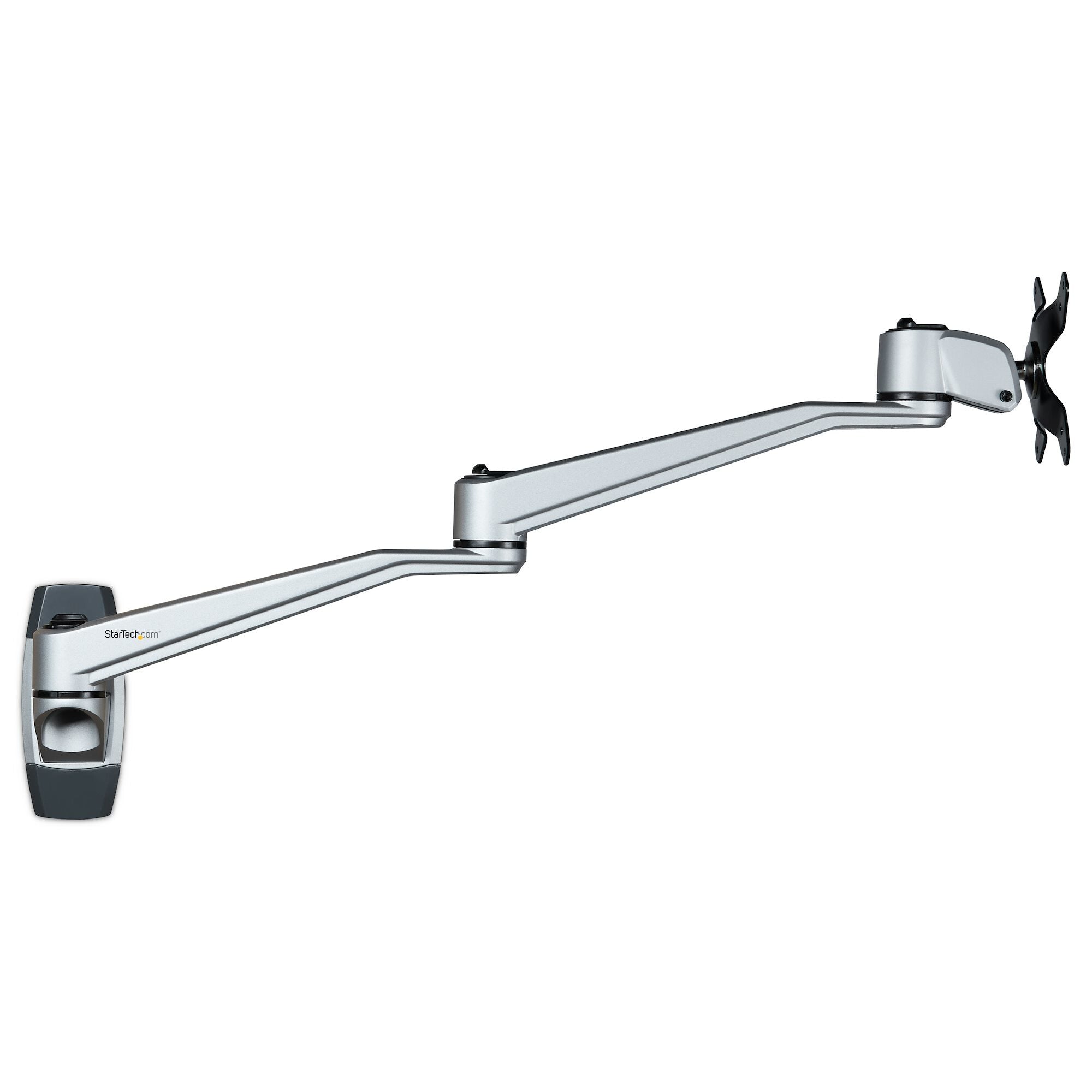

Adjust the Dual-Swivel Arm with Ease
The wall-mount monitor arm extends a full 20.4” (52 cm) and has three swivel points, offering an extended range of motion. Move the dual-swivel arms left or right, to change your screen position. You can also adjust the swivel tension.
Durable and Stable Construction
The robust aluminum design provides a stable wall-mount for your computer monitor or flat-screen TV up to 34″. It’s ideal for touch-screen stability. The universal display wall mount supports VESA mount monitors (75×75, 100×100) up to 30.9 lb. (14 kg) in weight.

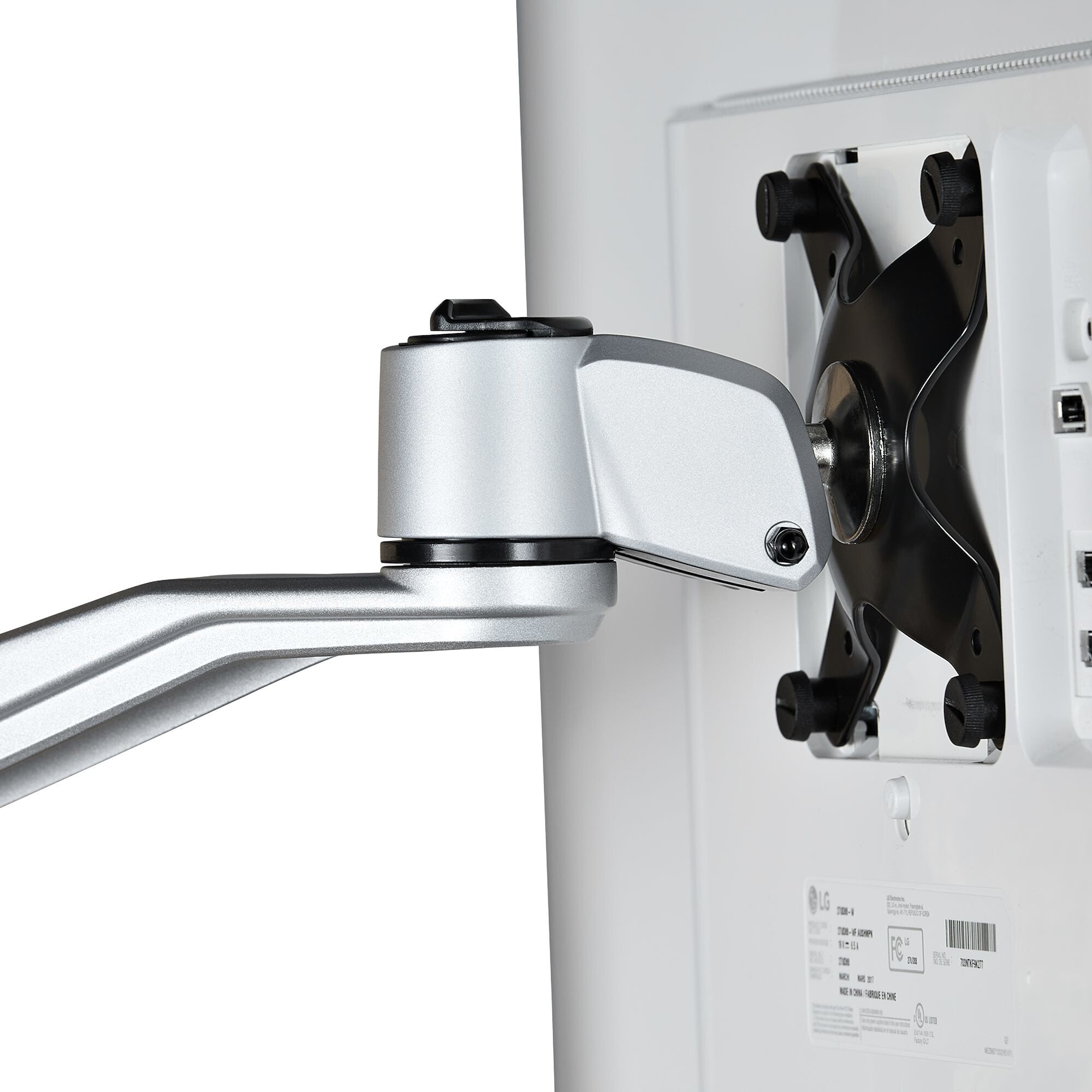

Adjust your Viewing Angle
Share your screen with ease. The display wall mount offers a full +180-degree/-180-degree pan, to move your screen left or right. It tilts freely +90/-15-degrees, to adjust the angle up or down. Rotate your screen for landscape or portrait viewing.
Low-Profile Design
Push the swivel arm back to the wall, so your monitor sits just 5″ (129 mm) from the wall when not in use.
Tool-less Assembly
The quick slide-and-click connections make the monitor wall mount easy to assemble and saves time when setting up multiple units.
The TAA compliant ARMWALLDSLP is backed by a StarTech.com 10-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Mounting | |
|---|---|
| Distance to the wall (max) | 52 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Maximum screen size | 76.2 cm (30″) |
| Minimum screen size | 33 cm (13″) |
| Maximum weight capacity | 14 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Pan range | -180 – 180° |
| Angle of rotation | 360° |
| Tilt angle range | -15 – 90° |
| Height adjustment | No |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | Silver |
| Weight & dimensions | |
|---|---|
| Weight | 3.38 kg |
| Height | 122 mm |
| Depth | 325 mm |
| Width | 340 mm |
| Packaging data | |
|---|---|
| Package weight | 4.6 kg |
| Package height | 100 mm |
| Package depth | 340 mm |
| Package width | 240 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of screws | 6 |
| Screws included | Yes |
| Wrench included | Yes |
| Other features | |
|---|---|
| Certification | CE, TAA, REACH |
| Screw type | M3 |
| Compliance certificates | RoHS |
| Depth (max) | 32.5 cm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case height | 425 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 355 mm |
