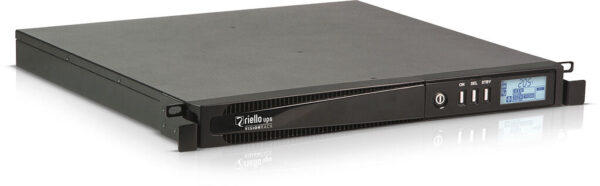

Riello VSR 800 uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 640 W 4 AC outlet(s)
- Automatic voltage stabilisation reduces risk of sags, surges, and brownouts
- Up to 98% efficiency
- EnergyShare socket allows load-shedding to extend battery runtime for critical loads
- Plug and play installation rackmount-style UPS
This is the rackmount-style version of our popular Vision INE INTERACTIVE UPS system. Available in either 800 VA or 1100 VA versions, the Vision Rack is an easy-to-use plug and play power supply suitable for servers, peripherals, and network backup systems.
Rackmount-style 800 VA or 1100 VA line interactive uninterruptible power supply which protects against power failures and incorporates an automatic voltage stabiliser that balances sags and power surges.
Designed for use with storage servers, peripherals, and network hardware, the Vision Rack features a special EnergyShare socket that enables load-shedding to extend the battery runtime available for more critical loads.
As well as protecting against blackouts, its automatic voltage stabiliser smooths out potentially damaging sags and surges to the mains supply.
Simple plug and play installation plus a backlit LCD display panel are just two of the Vision Rack’s user-friendly features. Another is a Cold Start function where you can start up the UPS even if there isn’t any mains electricity available.
Operating efficiency of up to 98% minimises energy waste and power consumption. While load-shedding is possible thanks to a special EnergyShare socket, meaning you can shut down less sensitive devices and prioritise battery runtime for more critical loads.
Easily integrates with the free Riello UPS communications software PowerShield3 so each connected device can be safely shut down.
Features | |
---|---|
Power protection features | Battery discharge, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Noise level | 50 dB |
Number of output phases | 1 |
Number of input phases | 1 |
Automatic Voltage Regulation (AVR) | Yes |
Output frequency | 50/60 Hz |
Output operation voltage (max) | 240 V |
Output operation voltage (min) | 220 V |
Input frequency | 50/60 Hz |
Input operation voltage (max) | 290 V |
Input operation voltage (min) | 162 V |
Waveform | Sine |
Output power | 640 W |
Output power capacity | 0.8 kVA |
UPS topology | Line-Interactive |
Ports & interfaces | |
---|---|
Serial interface type | RS-232 |
Serial interface | Yes |
USB port | Yes |
AC outlets quantity | 4 AC outlet(s) |
Power plug | C14 coupler |
AC outlet types | C13 coupler |
Battery | |
---|---|
Battery recharge time | 6 h |
Battery technology | Sealed Lead Acid (VRLA) |
Design | |
---|---|
Display type | LCD |
Rack capacity | 1U |
Product colour | Black |
Form factor | Rackmount |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 5 – 95% |
Operating temperature (T-T) | 0 – 40 °C |
Safety regulation & standards | |
---|---|
Safety | IEC EN 62040-1, EMC IEC EN 62040-2 |
Packaging content | |
---|---|
Manual | Yes |
Certificates | |
---|---|
Certification | L V 2014/35/EU, EMC 2014/30/E |
Compliance certificates | RoHS |
Weight & dimensions | |
---|---|
Weight | 12 kg |
Depth | 420 mm |
Packaging data | |
---|---|
Package weight | 14.5 kg |
Package height | 140 mm |
Package depth | 540 mm |
Package width | 595 mm |
