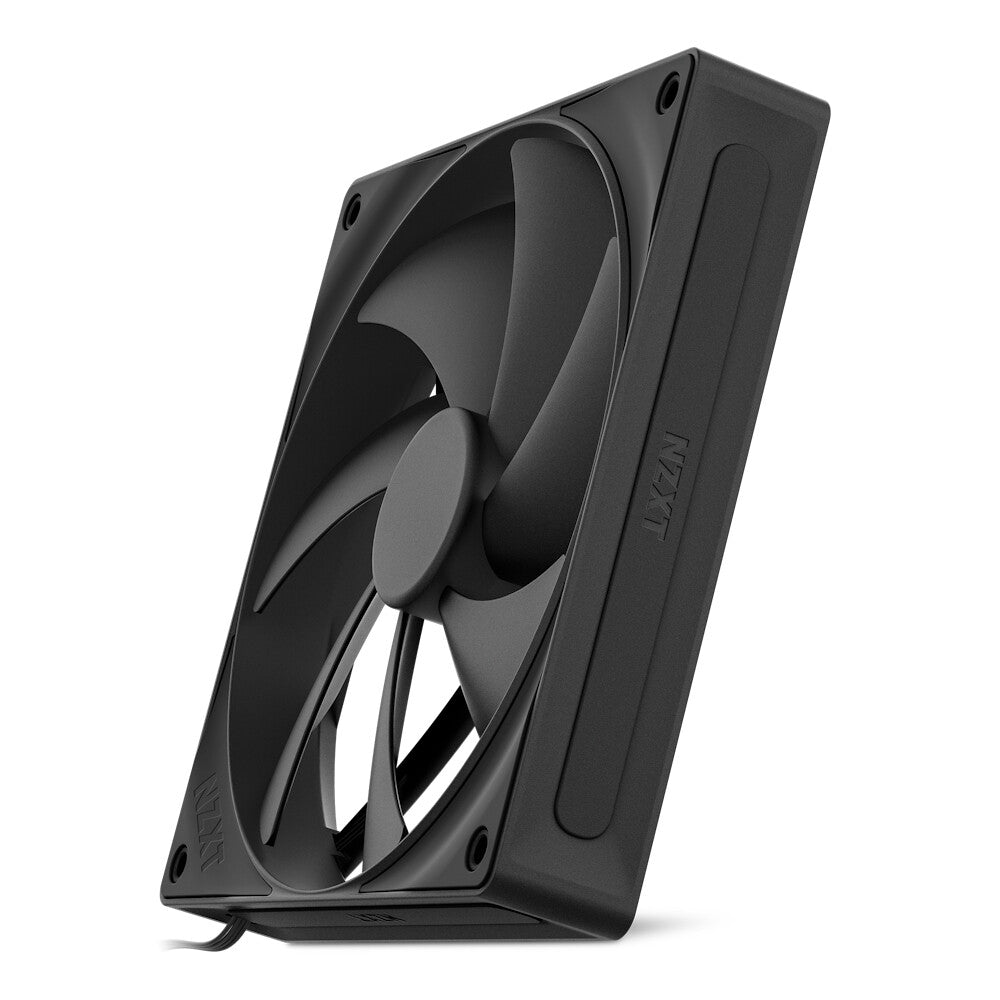

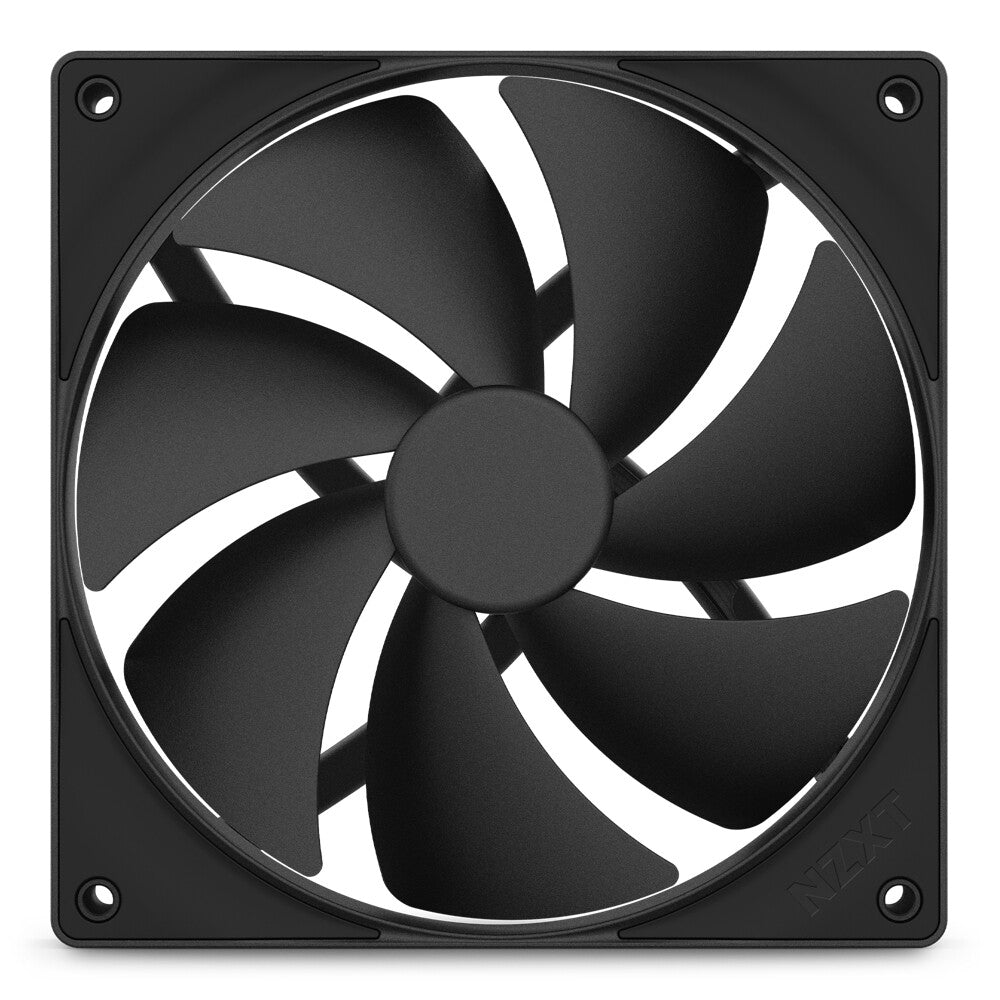

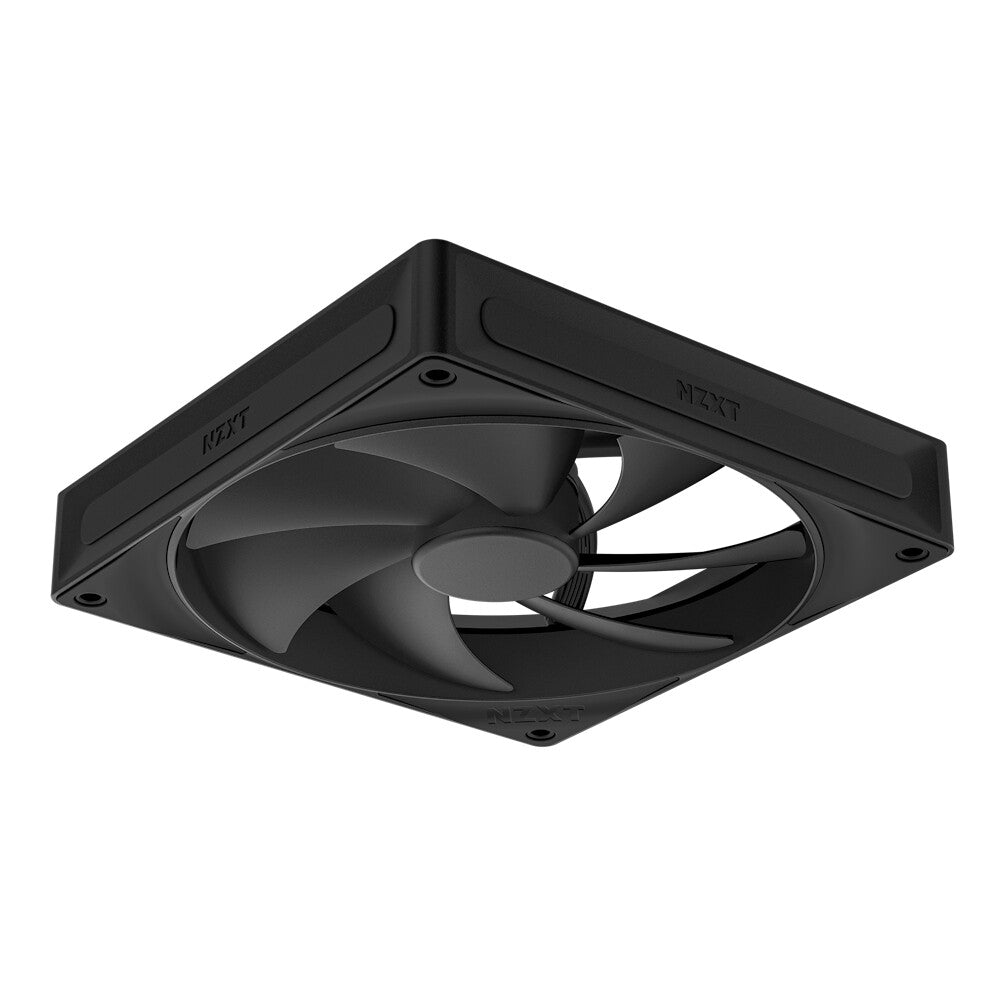

NZXT F140P Computer case Fan 14 cm Black 1 pc(s)
- Seven thick blades are designed for high static pressure so air can be pushed through tight spaces, ideal for mounting on radiators and heatsinks
- Minimal gap between blade edges and frame maximizes the spinning area for higher airflow volume and efficiency
- Chamfered frame design directs air in a powerful concentrated flow pattern, traveling far into the case to cool vital components
- Fluid dynamic bearings provide unwavering stability, low-noise operation, and a 60,000-hour lifespan
- PWM control dynamically adjusts fan speed for higher output or lower noise based on system temperatures for efficient cooling
- Sturdy frame with rubberized corners absorbs vibrations for low-noise operation, even at high speeds
140mm Static Pressure PWM Case Fan
NZXT Static Pressure Fans deliver strong airflow in tight spaces, like radiators and heatsinks. With optimized blades, chamfered frame, and fluid dynamic bearings, they offer high-performance, low-noise cooling.
High Static Pressure
Pressure-optimized blades force air through tight spaces like radiators and heatsinks.
Efficient Airflow
Minimal blade-to-frame gap maximizes the spinning area for optimal performance.
Powerful Cooling
Chamfered frame directs air in a concentrated pattern that travels far into the case.
Low Noise, Long Lasting
Fluid dynamic bearings ensure quiet operation with a 60,000-hour lifespan.
Speed Regulation
PWM control adjusts speed based on system temperatures for efficient, quiet cooling.
Silent & Stable
Sturdy frame and rubberized corners absorb vibration noise.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Fan speed (max) | 1700 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 4.45 mmH2O |
| Maximum airflow | 93.2 cfm |
| Noise level (high speed) | 30 dB |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination LED | No |
| Number of fans | 1 fan(s) |
| Material | Plastic, Rubber |
| Product colour | Black |
| Power | |
|---|---|
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Rated current | 0.28 A |
| Rated voltage | 12 V |
| Power consumption (typical) | 2.76 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Height | 25 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
