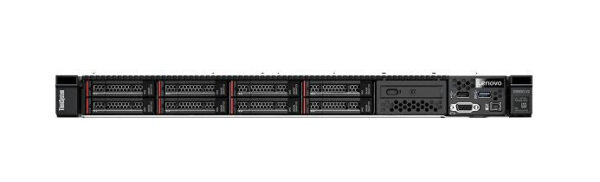

Lenovo ThinkSystem SR630 V2 server Rack (1U) Intel Xeon Silver 4309Y 2.8 GHz 32 GB DDR4-SDRAM 1100 W
- Intel Xeon Silver 4309Y 2.8 GHz
- 32 GB 3200 MHz DDR4-SDRAM 1 x 32
- Rack (1U) 1100 W
ThinkSystem SR630 V2 Rack Server
Built for business, with business-critical versatility
The versatile, highly reliable 1U ThinkSystem SR630 V2 2P rack server is designed to handle hybrid data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
Future defined data center
Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR630 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
ThinkSystem SR630 V2 is tuned for Intel® Optane™ Persistent Memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.
Flexible storage
Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, U.2 & U.3 NVMe PCIe drives, or EDSFF-based SSDs. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
| Processor | |
|---|---|
| Number of processors installed | 1 |
| Motherboard chipset | Intel C621A |
| Processor cache | 12 MB |
| Processor cores | 8 |
| Performance-core base frequency | 2.8 GHz |
| Efficient-core base frequency | 2.8 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 2.8 GHz |
| Processor model | 4309Y |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory ranking | 2 |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Internal drive bays | 8 |
| Optical drive type | No |
| Hot-swap | Yes |
| Supported RAID controllers | 9350-8i |
| RAID support | Yes |
| Supported HDD sizes | 2.5″ |
| Number of HDDs supported | 8 |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card model | Matrox G200 |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 2 |
| Design | |
|---|---|
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Performance management | XClarity Enterprise |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016Microsoft Windows Server 2019Microsoft Windows Server 2022Red Hat Enterprise Linux 7.9Red Hat Enterprise Linux 8.2Red Hat Enterprise Linux 8.3SUSE Linux Enterprise Server 12 SP5SUSE Linux Enterprise Server 12 Xen SP5SUSE Linux Enterprise Server 15 SP2SUSE Linux Enterprise Server 15 Xen SP2VMware ESXi 6.7 U3 VMware ESXi 7.0 U2 |
| Operating system installed | No |
| Power | |
|---|---|
| Number of redundant power supplies installed | 1 |
| Number of redundant power supplies supported | 2 |
| Power supply | 1100 W |
| Redundant power supply (RPS) support | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 8 – 90% |
| Storage temperature (T-T) | -40 – 60 °C |
| General | |
|---|---|
| Product family | ThinkSystem |
| Weight & dimensions | |
|---|---|
| Depth | 773 mm |
| Height | 43 mm |
| Width | 440 mm |
