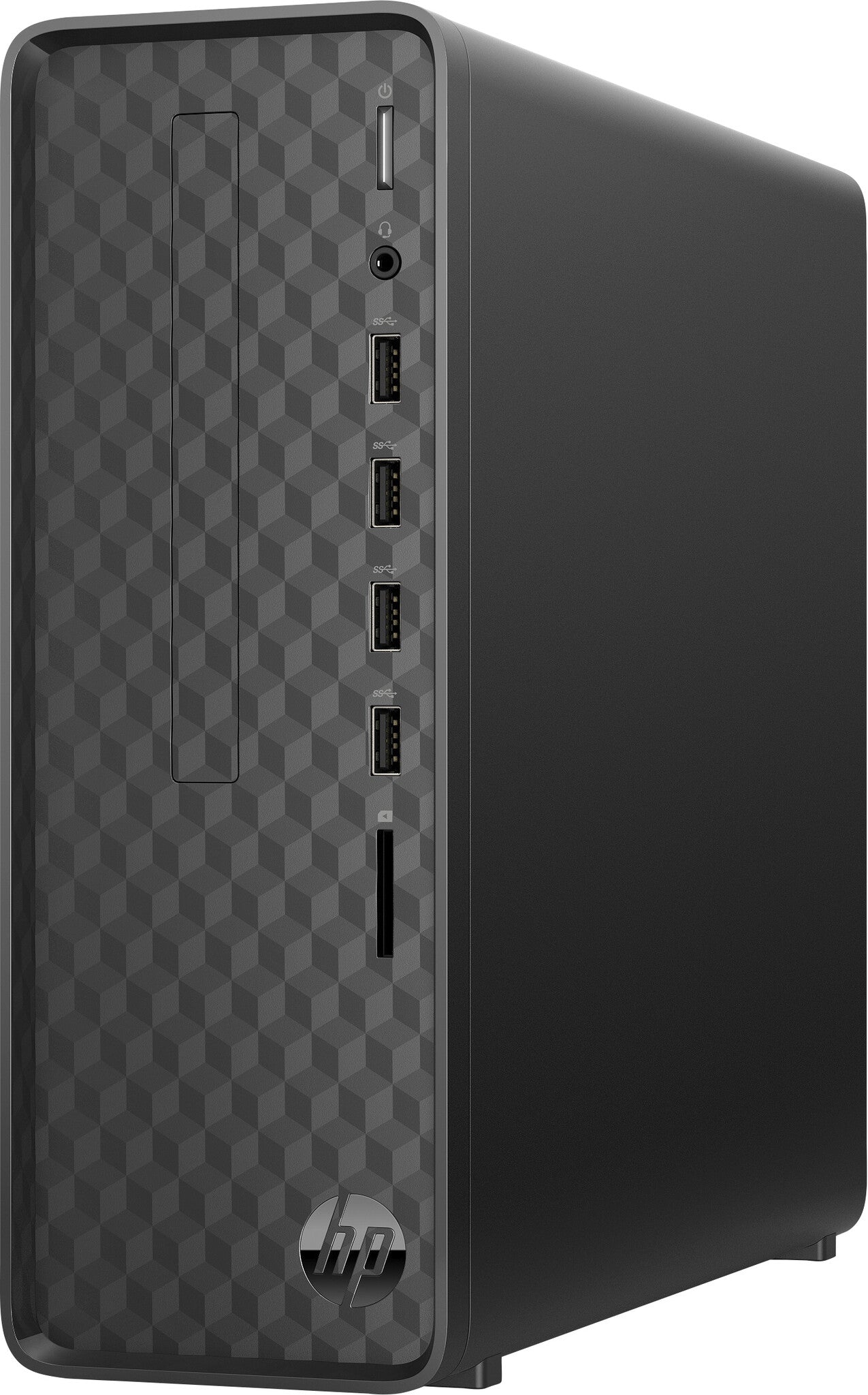

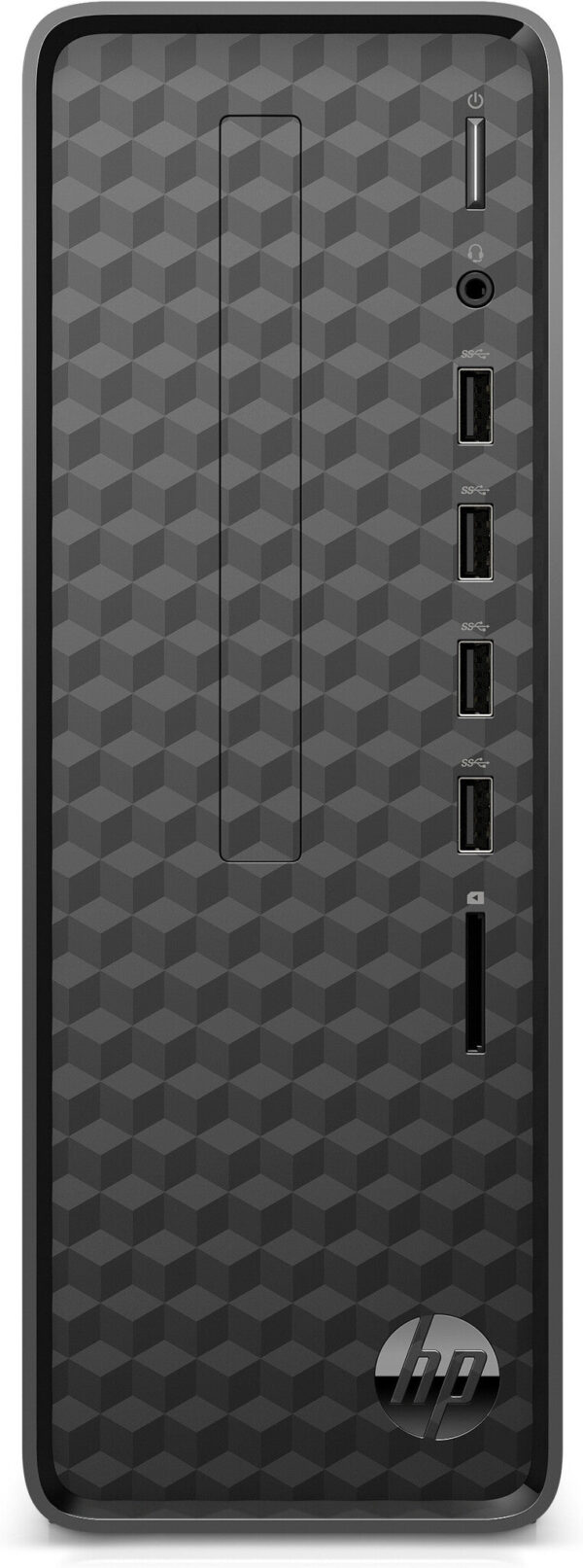

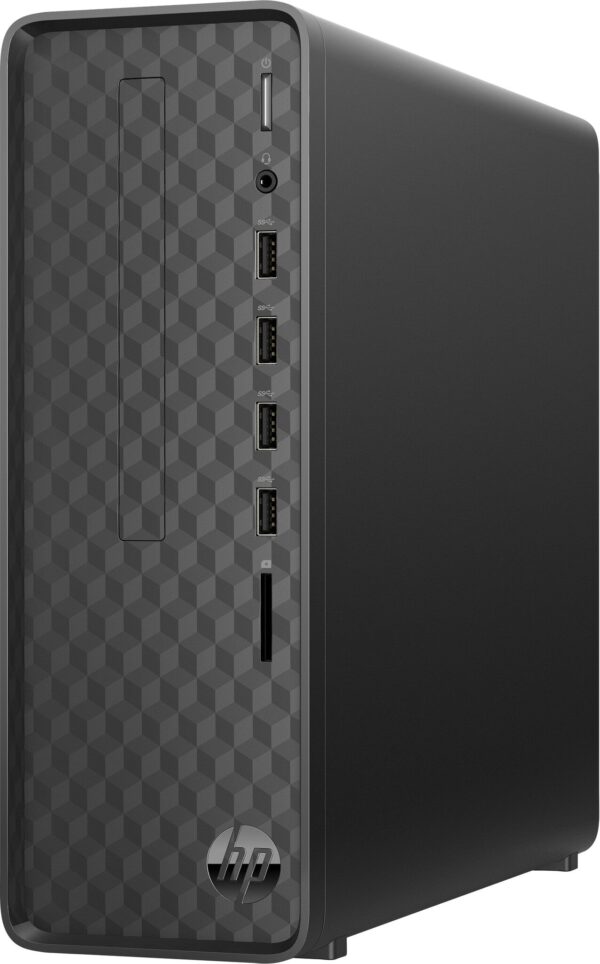

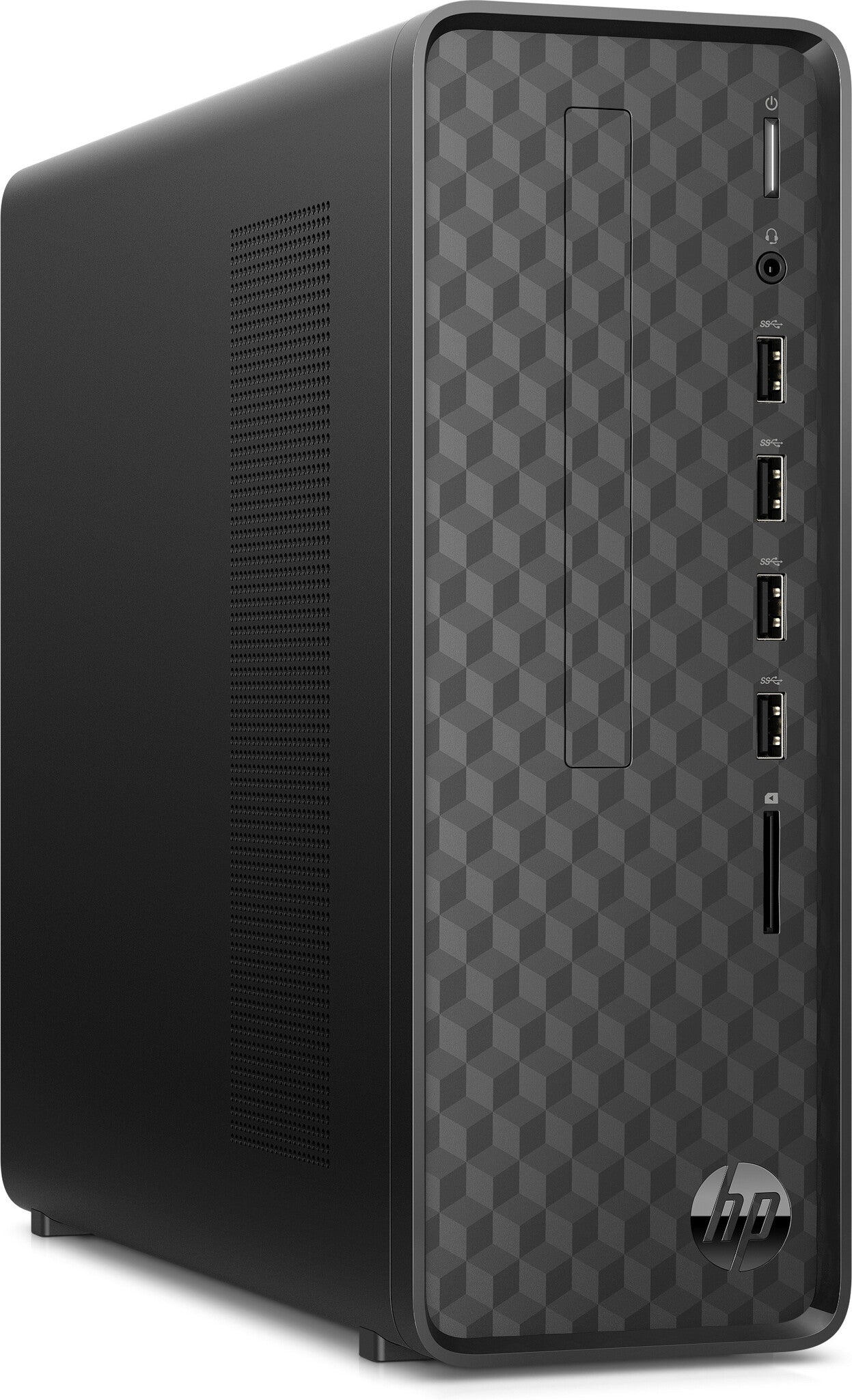

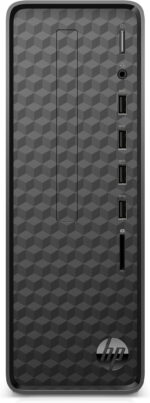

HP Slim Desktop S01-aF1003na Bundle PC Intel® Pentium® J5040 4 GB DDR4-SDRAM 1 TB HDD Windows 10 Home Mini Tower Black
- Windows 10 Home 64-bit
- Intel Pentium Silver J5040 (4MB Cache, 2GHz)
- 4GB (2400MHz) DDR4-SDRAM (1 x 4) & 1000GB HDD
Slimmer design. Performance you can depend on.
Make the most of your living space with a reliable compact PC. Designed to take up less space where you need it, the HP Slim Desktop delivers technology and reliability you can depend on, with a slim design that fits anywhere.
| Processor |
| Memory clock speeds supported by processor |
2400 MHz |
| Memory types supported by processor |
DDR4-SDRAM, LPDDR4-SDRAM |
| Maximum internal memory supported by processor |
8 GB |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
6 |
| PCI Express configurations |
1×4+1×2, 4×1, 2×1+1×2+1×2 |
| PCI Express slots version |
2.0 |
| Tjunction |
105 °C |
| Processor codename |
Gemini Lake Refresh |
| Thermal Design Power (TDP) |
10 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor cache type |
L2 |
| Processor cache |
4 MB |
| Processor socket |
BGA 1090 |
| Processor frequency |
2 GHz |
| Processor boost frequency |
3.2 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
J5040 |
| Processor family |
Intel® Pentium® |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory clock speed |
2400 MHz |
| Memory slots |
2x DIMM |
| Memory layout (slots x size) |
1 x 4 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Card reader integrated |
Yes |
| HDD speed |
7200 RPM |
| HDD interface |
SATA |
| HDD capacity |
1 TB |
| Number of HDDs installed |
1 |
| Total HDDs capacity |
1 TB |
| Number of storage drives installed |
1 |
| Storage media |
HDD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| Number of execution units |
18 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.4 |
| On-board graphics card ID |
0x3184 |
| On-board graphics card base frequency |
250 MHz |
| On-board graphics card dynamic frequency (max) |
800 MHz |
| Maximum on-board graphics card memory |
8 GB |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card burst frequency |
800 MHz |
| On-board graphics card model |
Intel® UHD Graphics 605 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| MU-MIMO |
Yes |
| Miracast |
Yes |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Antenna type |
1×1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer |
Realtek |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| M.2 card slot (storage) |
2 |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
1.4b |
| HDMI ports quantity |
1 |
| DVI port |
No |
| VGA (D-Sub) ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Design |
| Country of origin |
China |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Number of 3.5″ bays |
1 |
| Chassis type |
Mini Tower |
| Performance |
| Audio output channels |
5.1 channels |
| Motherboard form factor |
mini ITX |
| Motherboard chipset |
Intel SoC |
| Market positioning |
Everyday |
| Product type |
PC |
| Software |
| Bundled software |
Dropbox |
| Trial software |
McAfee LiveSafe, Microsoft Office 365 |
| Pre-installed software |
Alexa; Netflix; ExpressVPN |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| Intel® Anti-Theft Technology (Intel® AT) |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Turbo Boost Technology |
No |
| Intel® Smart Response Technology |
No |
| Intel 64 |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel® Secure Key |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Processor package size |
25 x 24 mm |
| Supported instruction sets |
SSE4.2 |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
197304 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| UART |
Yes |
| Brand-specific features |
| HP segment |
Home |
| HP Software provided |
HP Audio Switch |
| HP Support Assistant |
Yes |
| Weight & dimensions |
| Package weight |
6.2 kg |
| Package height |
346 mm |
| Package depth |
196 mm |
| Package width |
499 mm |
| Weight |
3.02 kg |
| Height |
270 mm |
| Depth |
303 mm |
| Width |
95 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
Slim Desktop |
| Product series |
S01 |
