Axagon EEM2-GTS storage drive enclosure SSD enclosure Grey M.2

• Compatible with USB 3.2 Gen 2, backward compatible with USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0), USB 2.0
• Supports transmission rates 10.000 / 5000 / 480 Mbit/s (SuperSpeed+ / SuperSpeed / HighSpeed)
• Supports M key or B+M key NVMe (PCI-Express) M.2 SSD disks without maximum capacity limitation
• Supports M.2 drives with a size of 2230, 2242, 2260, 2280 mm
• Supports one-sided and double-sided M.2 SSD disks
• Compliant with PCI Express Base Specification Revision 3.1a
• Compliant with NVM Express 1.3 Specification
• Compliant with USB Mass Storage Class Specification
• The total box bandwidth / transmission rate is determined by the USB 3.2 Gen 2 interface used (theoretically up to 10 Gbit/s)
• The real box bandwidth / transmission rate is around 1000 MB/s (1 GB/s), it is given by the limits of the USB 3.2 Gen 2 interface

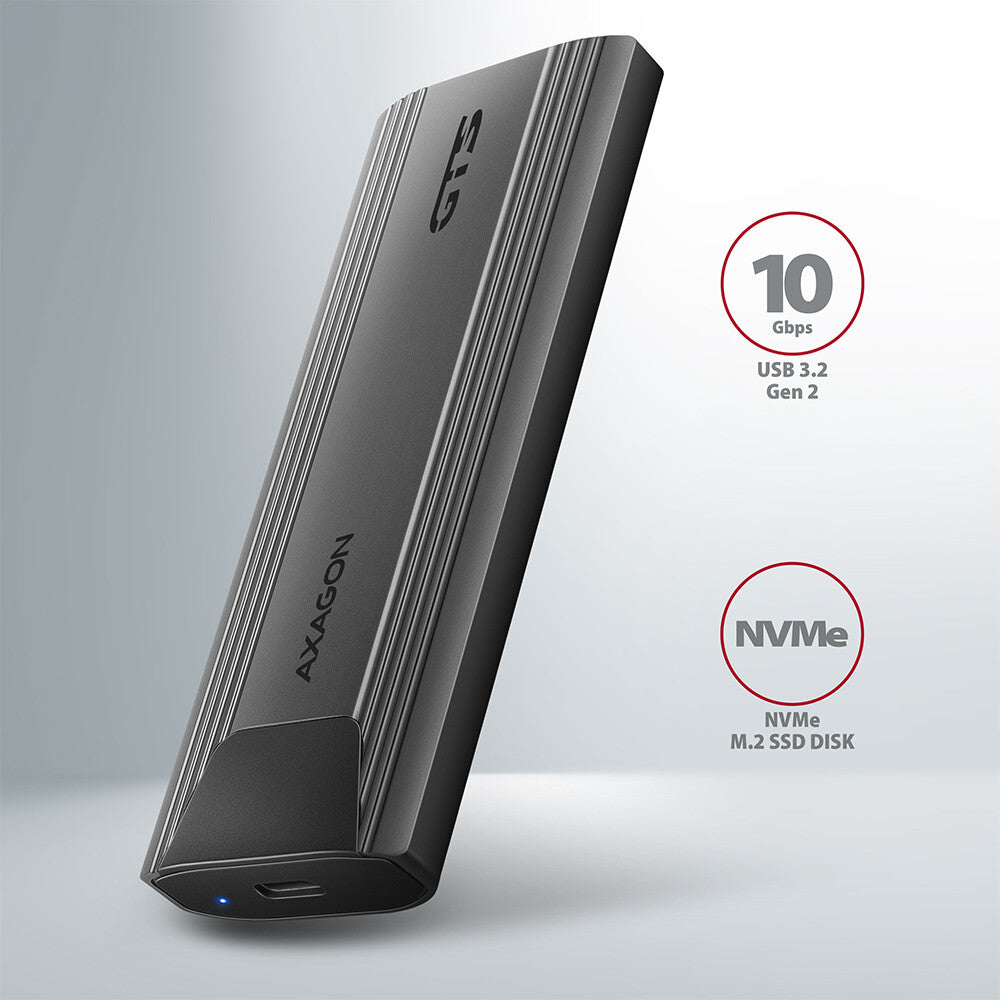

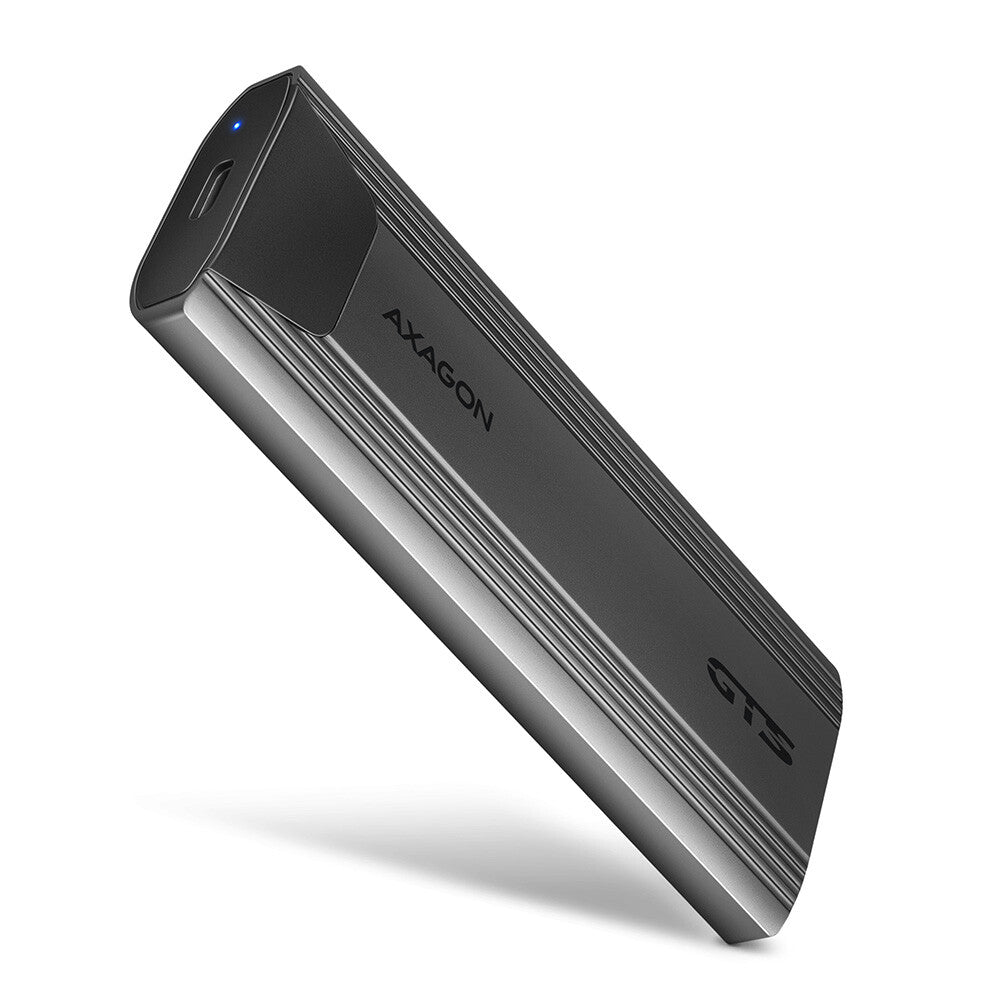

Superfast external AXAGON EEM2-GTS THIN SCREWLESS box with USB 3.2 Gen 2 interface is designed for NVMe (PCI-Express) M.2 SSD disks. The double-sided USB-C connector on the box together with the supplied USB-C <-> USB-C cable enables a reliable connection to a computer.

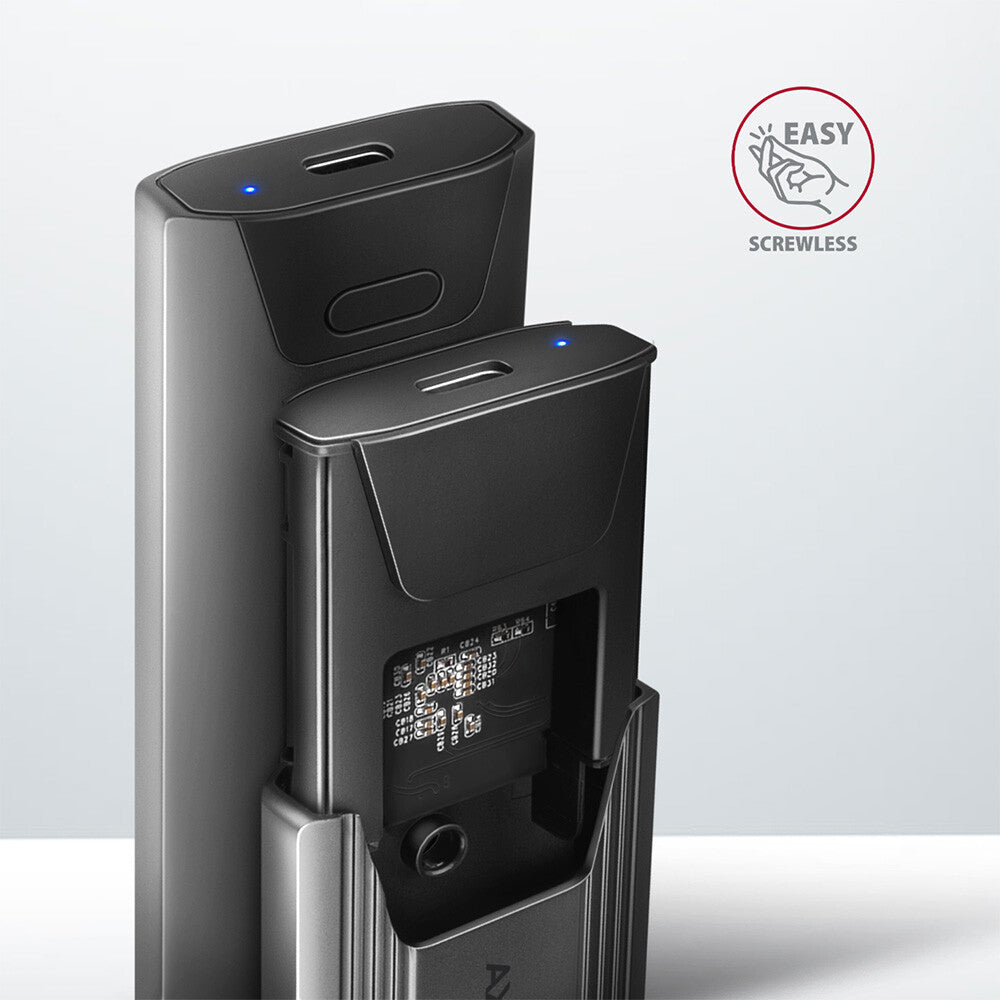

Screwless box opening facilitates assembly and disassembly of the M.2 SSD disk. Disk replacement is quick and easy, thus expanding the possibilities of using the box, e.g. for data migration, testing, etc.

Aluminum box body and thermal conductive pad provides very good M.2 SSD disk cooling. This extends its service life and also prevents the disk from slowing down, so-called “Thermal Throttling”. Robust box body also protect the disk.

SuperSpeed USB 10 Gbit/s interface allows you to enjoy the speed of modern M.2 SSD drives. Due the fast USB 3.2 Gen 2 interface the transmission speed is up to 10Gb/s. The external M.2 box also supports other modern functions, e.g. UASP and allows reading S.M.A.R.T. information that monitors the status of the disk. Standby support when idle.

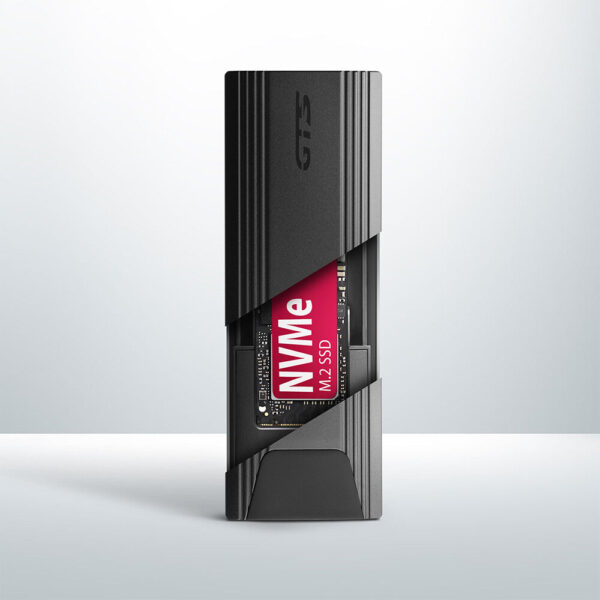

NVMe M.2 SSD disk up to 22×80 mm can be used in the external box. The box has no SSD disk capacity limitation. M.2 cards can be single-sided or double-sided. Inserting M.2 SSD disk into this box you will create a fast and compact external drive. The box can be used with computers and notebooks, as well as with mobile phones and tablets.
