Axagon EE25-S6 storage drive enclosure HDD/SSD enclosure White 2.5″

• HDD/SSD enclosure Serial ATA, Serial ATA II, Serial ATA III 2.5″
• Number of storage drives supported: 1
• USB connectivity
• UASP support
• 5 Gbit/s
• White

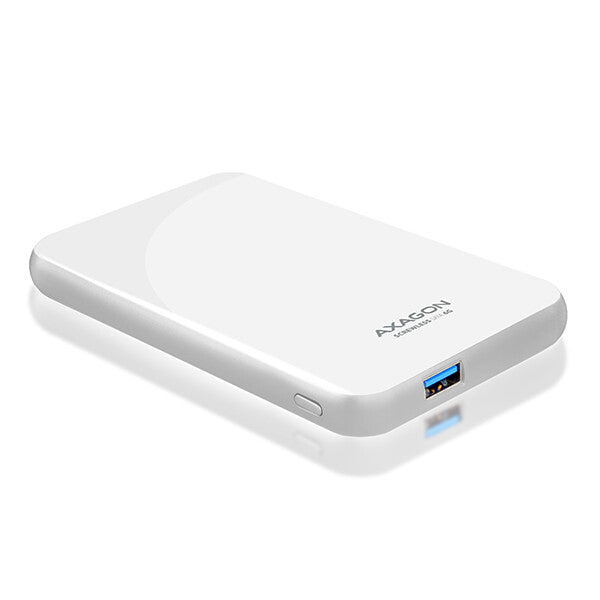

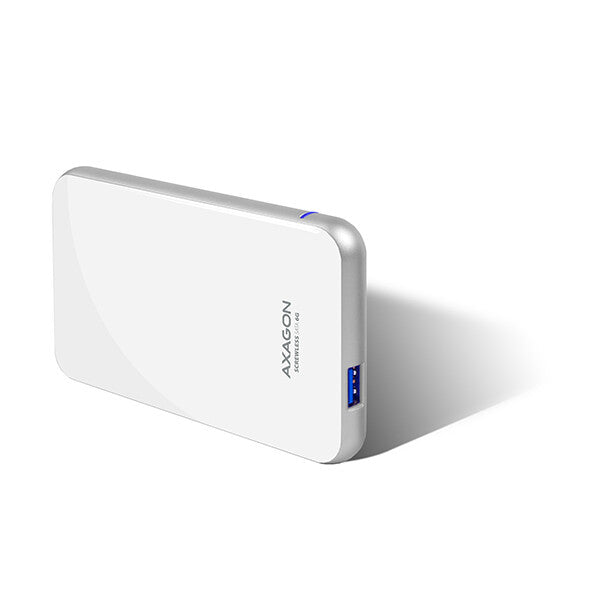

The universal plastic AXAGON EE25-S6 SCREWLESS WHITE external box with USB 3.0 and SATA 6G interface designed for 2.5″ SATA hard disks or SSDs.

Easy and quick change of disks in the box without the need for screwing extends the usage also by data migration, testing and other purposes.

The actual SATA III/6G interface with UASP support allows you to enjoy the speed of modern SSD disks.

Reading of S.M.A.R.T. information monitoring the condition of the external disk. Supports spinning down of connected disks as well as the box.

The use of a large USB Type A connector contributes to a reliable connection without failures and without the risk of connector breakage.

The integrated button allows for quick and convenient switching on / off of the external disk.

Features:
• Compatible with USB 3.0 and backward compatible with USB 2.0.
• Supports transmission rates 12 / 480 / 5000 Mb/s (low / full / high speed).
• Supports 2.5″ SATA III/II/I SSD and HDD of a max. height 9.5 mm without limiting maximum capacity.
• Compliant with Serial ATA 3.1 specification (SATA/600), transmission rates of up to 6 Gb/s.
• Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
• Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
• The total bandwidth / transmission rate of the box is determined by the USB 3.0 interface used (theor. 5 Gbit/s).
• Supports UASP (USB Attached SCSI Protocol).
• SSD/HDD boot support in external box.
• HDD Auto Spindown – automatic spindown of a disk after period of inactivity lasting 10 minutes.
• HDD Turn Off – turns off the disk after removing the device or spinning down the PC.
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Connection via USB 3.0 Type A female connector.
• USB 3.0 Type A male / USB Type A male cable 60 cm long is included.
• Supplying the power via USB 3.0 bus up to 900mA from one USB port is sufficient in all cases.
• A decent blue LED indicating the connection to the computer’s USB port (permanent light) and data transmission (blinking).
• Plastic body with a quick screwless installation of the disk – just move aside the top cover of the box, insert the disk and put the top cover back.
• External box dimensions 135 x 80 x 17 mm.
• External box weight 72 g (without USB cable and disk).

Supported OSs:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.
• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.

Package contains:
• USB 3.0 2.5″ external box in white/silver colour,
• USB 3.0 cable 60 cm long,
• a multilingual manual ENG/CZ/DE/ESP/FR/HU/IT/PL/RO/RU/SK,
• packed in a cardboard box.

• manual pdf
