ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

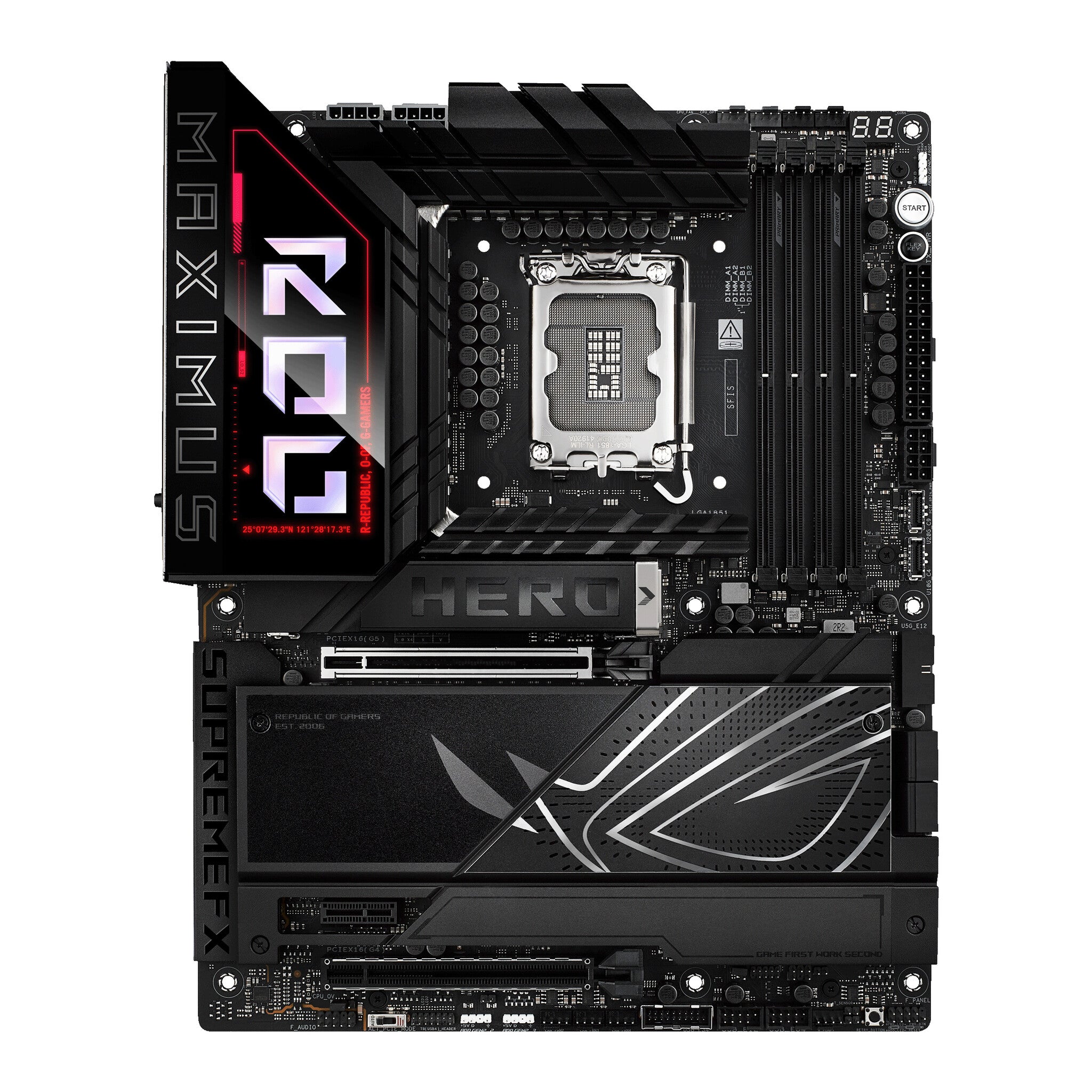

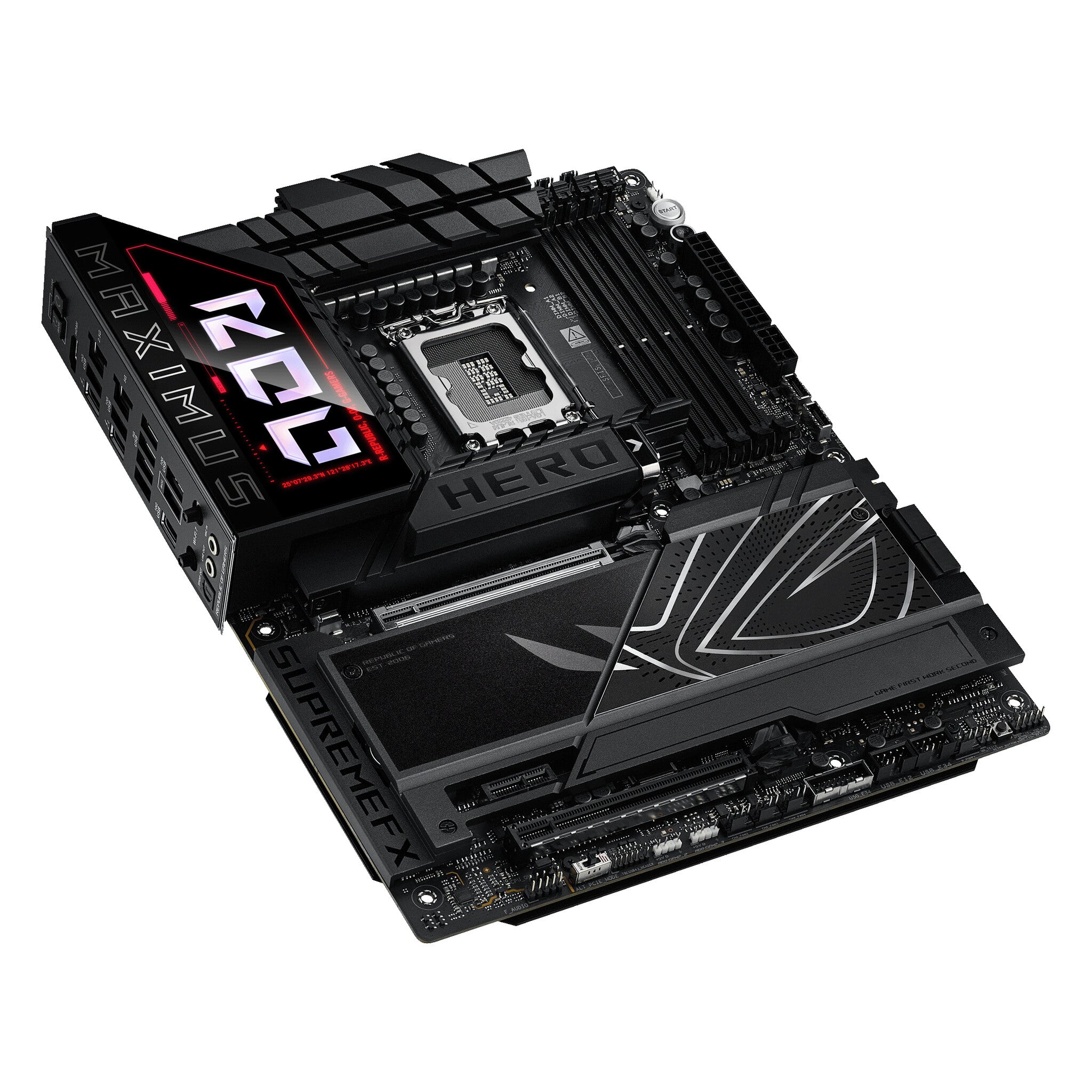

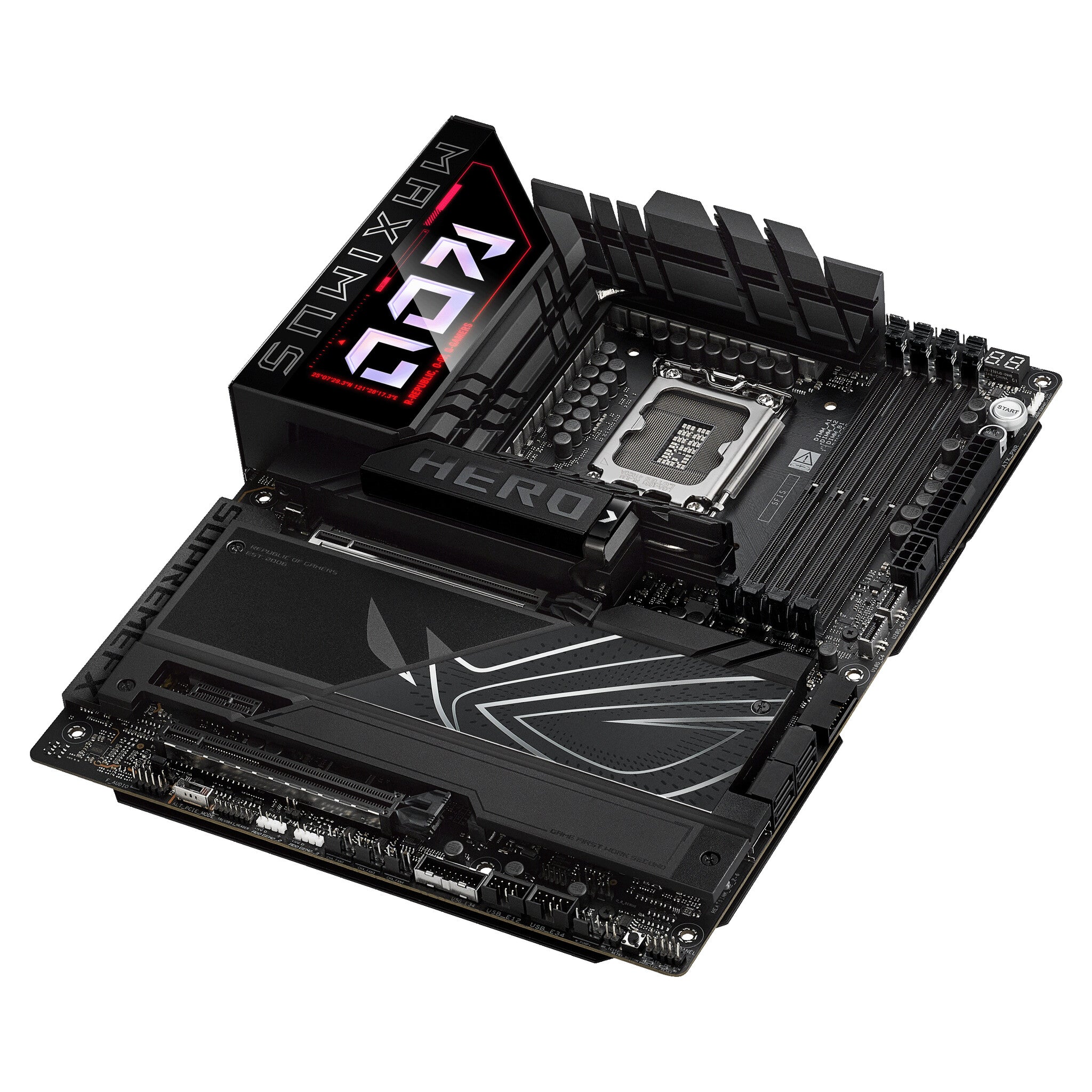

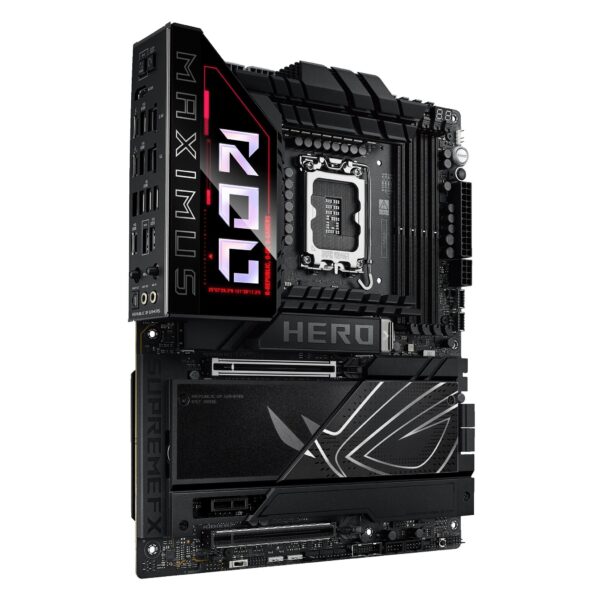

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
| Processor |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Processor socket |
LGA 1851 (Socket V1) |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| Supported memory clock speed (max) |
8800 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5 |
| RAID support |
Yes |
| Number of storage drives supported |
10 |
| Number of HDDs supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Thunderbolt headers |
1 |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
4 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2×2 connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| USB connector type |
USB Type-A, USB Type-C |
| Thunderbolt ports quantity |
2 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC4082 |
| Motherboard chipset |
Intel Z890 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
6 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| BIOS |
| Clear CMOS button |
Yes |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package height |
108 mm |
| Package depth |
312 mm |
| Package width |
370 mm |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
305 mm |
